This was an article written for The Offshore Support Journal in 2001. It probably remains valid today since one assumes that the leg length of jack-ups must have reached a maximum, although the drilling systems, the cargo systems and the accommodatio have probably continued to change. One also assumes that many of the older jack-ups are currently laid up or on their way to the breakers.

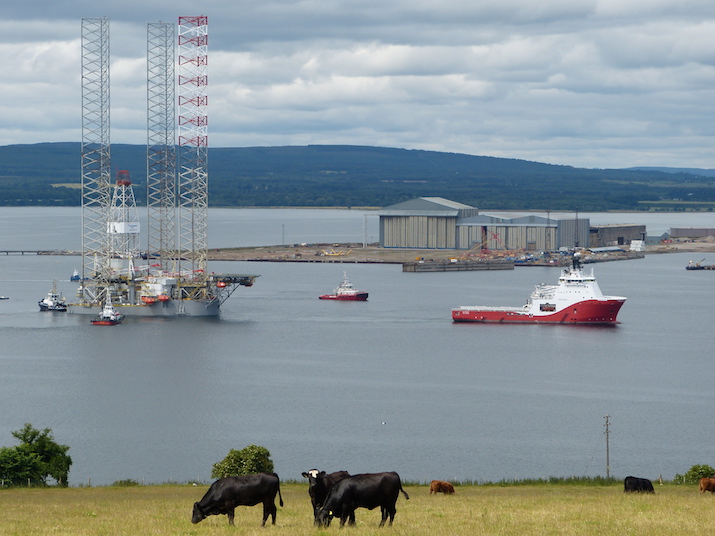

The jack-up GSF Galaxy I being towed out of the Cromarty Firth by the 28,000 bhp Siem Opal back in 2012.

Maersk Contractors recently announced that they have ordered  what they call an "ultra harsh environment jack-up" from Hyundai Heavy Industries in Korea, with delivery scheduled for late 2002. This is the second rig of this type to be constructed for Maersk, the first is also to be delivered in 2002. They will have a leg length of 205 metres enabling them to work in water depths of 150 metres (495 feet). In the North Sea such a jack-up could work as far north as the Brent Field.

Obviously these rigs are on the cutting edge of development. There are hundreds lesser jack-ups all over the world drilling holes and being moved from location to location with never a mention about their activities in the marine or oil industry press, dazzled as every-one is by the glamour of the deepwater mooring operation. Jack-up moving is less glamorous than semi-submersible moving and sometimes requires no anchor-handling, but that is not to say that it does not have its own difficulties or, just because the operation requires less powerful craft, the level of expertise on the part of the mariners and rig movers is less.

In fact, even though moving jack-ups over long distances may not be as glamorous as towing semi-submersibles it would certainly appear to be more dangerous. While World Offshore Accident Database, commonly known as WOAD, only records one semi as having sunk when under tow, it shows that many jack-ups have been lost while afloat. In at least one case one has sunk when the distance to be travelled was less than 40 miles. During some tows even if the rig has not been lost they have shed bits, particularly legs.

Jack-ups are not really marine structures. They are most secure when they are standing on the seabed with the hull fifty feet or so above the waves, looking a bit like a triangular coffee tables. Making the change from being a secure structure, impervious to the effects of wind and waves to being a marine object – now an upside down coffee-table with the legs sticking up hundreds of feet into the air – is difficult. Particularly difficult is the actual moment of transition and the Operations Manuals of these objects always specify the environmental criteria under which it can take place. Wave heights of more than one metre  are normally unacceptable. In addition the warranty surveyors will normally only give towing approval if the weather conditions for the whole tow will be acceptable due to the area of the world where it is to take place, the routing of the tow takes advantage of weather routing or jacking down positions are identified not more than 24 hours apart, if the tow in close to land.

In addition to the problems of ocean towing created by the configuration and the low freeboard of jack-ups, which is really a whole subject on its own, there are numerous operationally difficulties which those moving jack-ups must routinely face.

Oilfields in benign shallow water environments such as the Arabian and Mexican Gulfs usually consist of numerous individual wells each with its own small unmanned platform complete with helideck. Pipelines are then run on the seabed from each of the small platforms to a large central platform where the oil from the field is processed and then pumped onwards to the shore. Much of the work in these areas is related to work-overs where the rig has to make a close approach to the platform, jack up until it is above it, and then slide the drilling package out on the cantilever so that the well can be re-entered.

Jack-ups may be required to work in shallow waters, most extremely off the coast of the Indian subcontinent in drying heights. In these areas the location must be approached on a rising tide and the work completed before the tide falls to the point where the vessels carrying out the move would go aground.  Off the coast of Saudi Arabia there are complete oilfields consisting of fifty odd small platforms all in water depths varying between a maximum of 10 metres and a minimum of two or three metres. Jack-ups which are specially selected for their minimal draft deployed in these fields  and they are put in position and supplied by support vessels with similarly low drafts.

Fortunately for those working in this particular area of the world, one of its advantages is the firm sandy bottom which is an almost universal feature. The sand makes the process of getting a jack-up close to a platform particularly straightforward.

Part of the process in the Middle-east is for a diving ship to be allocated to the operation. Prior to the arrival of the rig, the diving ship will go to the position where the rig is to jack up and deploy a couple of air divers who will survey the seabed to make sure that there are no solid objects in the area where to rig's spud cans will touch the bottom. Once they have determined that the bottom is clear they will be directed to the platform, which of course is unmanned. They climb up to the level on the platform which is level with the main deck of the rig and wait.

As the rig approaches the platform the legs are lowered until they touch the seabed. This stabilises it while allowing controlled movement to take place. At this point the rig is stern on to the platform usually with a single towing vessel on the bow and one on each of the aft corners. The rig mover orchestrates the direction and power of all the ships to cause the rig to move very slowly backwards towards the platform, to the point where a tape measure may be thrown over to the divers who catch the end so that the precise distance off may be measured.

One of the features offshore in the Arabian Gulf are collection platforms, or as they are known in Saudi Arabia, GOSPs (Gas Oil Separation Platforms). These are large platforms, in middle eastern terms, which have accommodation and also some processing plant. Such structures require maintenance and in the Middle-east this is carried out by a hotchpotch of ships and rigs and self propelled jack-ups.

One of the more onerous activities is moving maintenance jack-ups into position in the close proximity to GOSPs, which are often T shaped. It is sometimes necessary to get the jack-up into the corner of the T which requires considerable dexterity, and sometimes very strong nerves on the part of the shipmasters. One technique is to pull the rig in on a short wire until the towing vessel is right up against the platform, assisted by two other ships which are tied alongside. Once the bow of the towing vessel is close to the platform, the legs are put on the bottom and the towing vessel released.

Some of the legs of the jack-up are then raised and one of the attendant vessels is attached to the  end furthest away from the platform and is used to pull the rig round through 180 degrees. This somewhat unorthodox approach gets the end of the rig into the right position without it having to be towed there.

In the North Sea the technique used is likely to be different. Firstly it is uncommon for the legs to be put down before the rig is actually positioned, since it is generally recognised that stressing the legs in a manner other than vertically is not good for them. This is a point well illustrated by the damage to the legs of the Ensco 101, which was apparently caught by the tide in the River Tay with at least one leg still attached to the river bed. It had to be immediately taken out of service for repairs.

Hence when approaching a platform in the North Sea the rig is oriented with its stern towards the platform and then held in position while the legs are put jacked down. When the hull is just in the water and the legs are taking the weight, the tugs will run the stern anchors either side of the jacket. The legs will then be lifted again and the rig pulled into the precise position required using its own winches. Once it is in position the legs can then be lowered again  and the tugs can recover the anchors.

Some operators have adopted an alternative technique which has a number of benefits. The rig is positioned a little off the location as before, but instead of the anchor-handlers running the rig anchors, they lay an anchor over their stern and then run in towards the aft corners of the rig paying out their work wires. They are then secured from the bow to the rig. The rig in now in a position to raise the legs again and it is pulled into position by the anchor- handler's work winches. The technique therefore avoids the use of the rig mooring equipment which is always pretty lightweight and sometimes poorly maintained.

What kind of vessels therefore, are used for this task, taking into account the fact that the towing requirements are often quite different from the positioning requirements. It can be a real disadvantage if too much power is used when placing a rig in the correct position, and an incautious pull on one corner while the rig is afloat can spin it like a top.

There is a natural tendency for the industry to relegate older craft to the jack-up job and in some places and for some rigs they are entirely suitable. In shallow waters the old American AHTS in particular are favoured, despite the fact that many of them are twenty years old. They are built to what used to be called the KISS principle (Keep It Simple Stupid) and therefore are firstly unlikely to break down and secondly are unlikely to require highly skilled technical help from the other side of the world. These old ships have fixed pitch propellers, two small engines connected by short shafts and probably five auxiliary engines, every one exactly the same, one driving the Smatco winch on the afterdeck, one the bowthruster, one driving the pumps and two the generators.

However, no matter how reliable these old ships they will shortly be falling to pieces, a fact that is well recognised by the industry. The average age of the Tidewater fleet is 17 years and their management are now desperately trying to update their tonnage by building and buying new ships. But they, like many other owners are opting for the more glamorous end of the market.

It is possible that some suitable designs are coming off the drawing boards at Rolls-Royce Ulstein, although no-one is actually daring to produce a ship with the 4000 bhp odd which is actually required for positioning small jack-up in calm shallow waters. Even small marine diesels develop around 12,000 bhp today and it seems likely that the Swire Pacific UT720s are pigeon-holed by most in the UK as being suitable for jack-up moving.

In reality they are probably vastly overpowered for most jack-up related tasks. In order to fulfil the same requirement world wide Swires are building four Rolls-Royce Ulstein 710s, which they say will principally support their West African Middle East and Far East operations. These ships will have 10,800 BHP available provided by 2 engines. Rolls-Royce Ulstein have also developed a variant of the UT719, the UT719-2 which looks as if it might also fit the bill.

When it comes to the "ultra harsh environment jack-ups" with their 500 foot legs, things may be approached differently. To start with it is unlikely that they will be able to move with the legs completely retracted into the hull, and the more leg there is extended the more power is required to make headway. A  medium sized jack-up with fifty feet of leg extended downwards may require as much as 20,000 bhp to move even at a two or three knots, and slow transit speeds can cause all sorts of complications particularly when it comes to weather windows. In the North Sea, jack-ups can sometimes wait for weeks for the right conditions, and being caught out afloat in the wrong place can be disastrous.

So it could be said that the 10,000 to 12,000 bhp vessel might be ideal for towing in the North Sea since the required 20,000 bhp would be provided by two vessels. Many of the sinkings of jack-ups while under tow have taken place when a single vessel was used for the tow, most famously the Rowan Gorilla I off Canada when being towed by the Smit London and the West Gamma when being towed by the Normand Drott. At the subsequent enquiry into the sinking of the West Gamma, the Captain of the Normand Drott said that the rig crew would have been less at risk "if the UK practice of using two tugs and an auxiliary vessel had been used".

While the moving of jack-ups appears to be of lesser importance than the moving of semi-submersibles there are about four times as many of them and although it is claimed that some very deep water moves can be undertaken by a single vessel, it is very difficult to move a jack-up with less than two ships and most rig movers prefer three. So, however you look at it, no matter how mundane,  jack-up moving looks like a growth industry.

The Rowan Gorilla V Leaving Aberdeen in 2008, being towed by the Viking Troll and one of the Deep Sea Supply 404s.
